SKM-2010

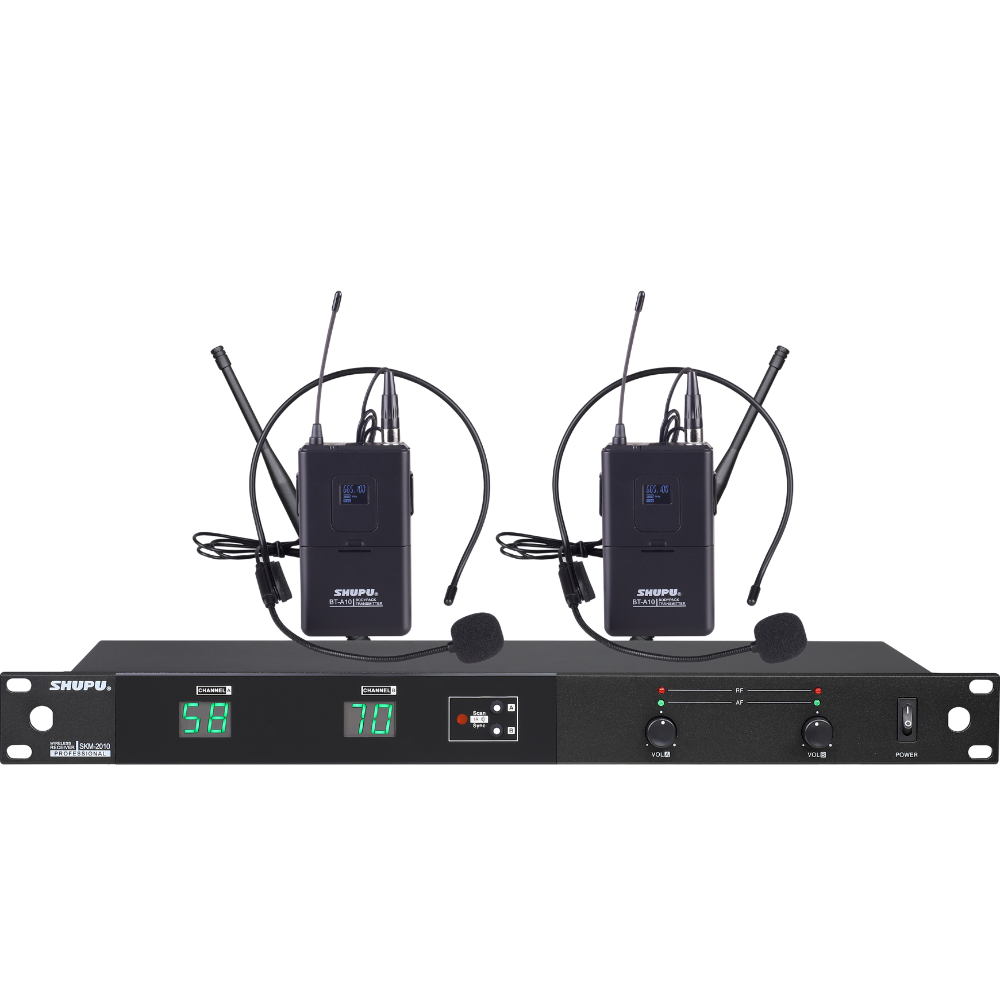

SKM-2010-1

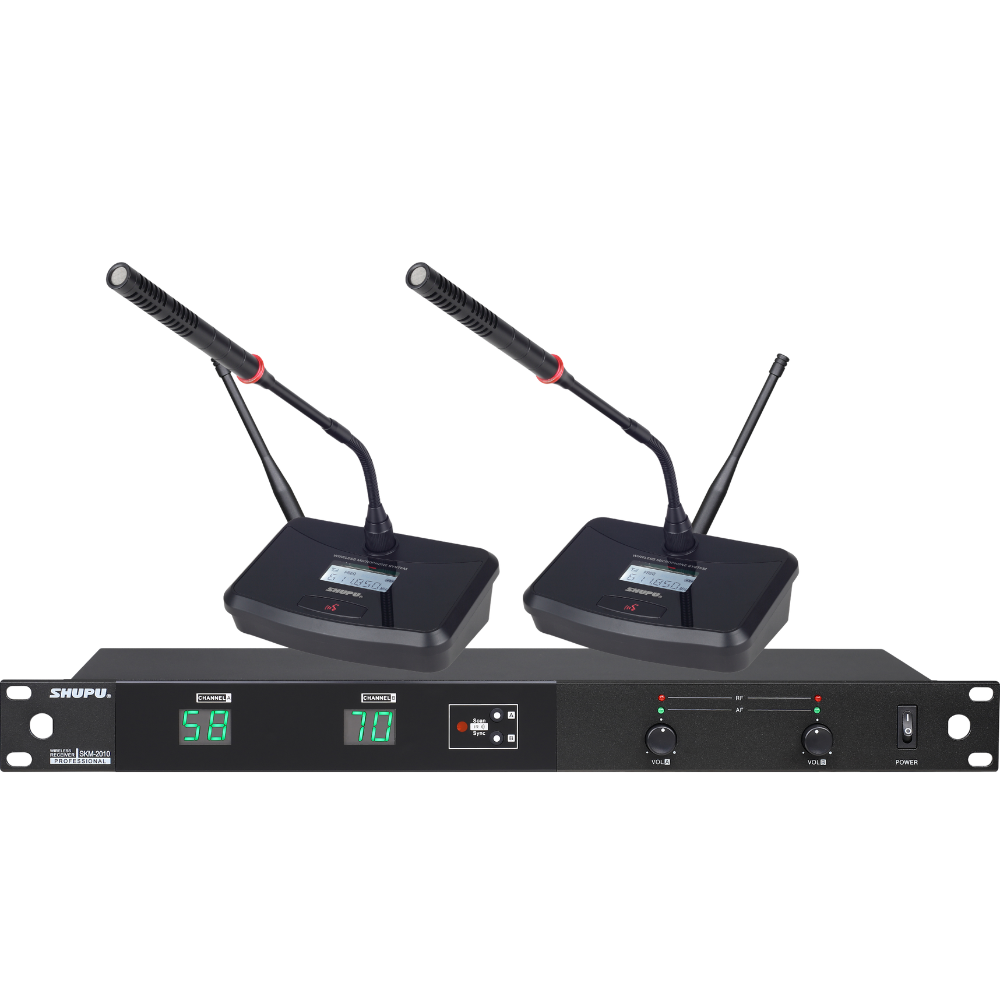

SKM-2010-2
SKM-2010

SKM-2010

SKM-2010

SKM-2010

Powered by KT chip and UHF dual-channel reception, the system features infrared frequency sync pairing between mic and receiver. It supports 2 handheld mics, 2 lavalier mics, or a mixed setup with zero interference.
Built-in displays on transmitter and receiver enable clear status monitoring. Noise lock and digital pilot tone eliminate static and cross-frequency interference, boasting 80m+ (open area)/50m (complex environment) range—5 systems usable concurrently in the same venue.
Premium integrated circuits enhance audio fidelity, while the wide-frequency unidirectional capsule delivers clear natural highs, powerful mids and smooth lows for superior sound performance.
Products Description
ReceiverFrequency Range: UHF 640–690MHz (100 channels each for A/B, total 200 channels)
Frequency Stability: ±0.05%
Dynamic Range: >90dB
Modulation Mode: FM (Frequency Modulation) & PLL (Phase-Locked Loop Frequency Synthesis)
Frequency Response: 70Hz–13KHz
SNR: ≥90dB
Adjacent Channel Interference Rejection: >80dB
Image Interference Rejection: >80dB
Operation Range: ≥60m (open area)
Power Supply: DC 12V/1000mA
Dimensions: 480×170×50MM
TransmitterCarrier Frequency: UHF 640–690MHz (adjustable by frequency band)
Frequency Stability: ±25KHz
SNR: >105dB
Dynamic Range: ≥100dB
Microphone Type: Dynamic or Condenser
Polar Pattern: Unidirectional
Frequency Response: 70Hz–13KHz
Microphone Sensitivity: -47±3dB @ 1KHz
Power Supply: DC 3V (2×1.5V AA batteries)
